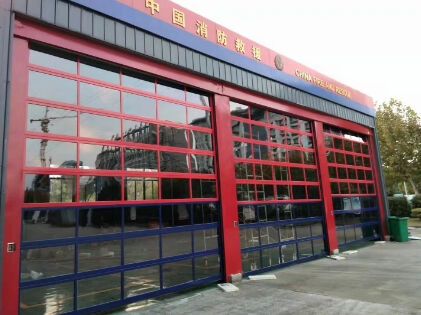

Customizable 40mm Thickness Wind-Resistant Industrial Sectional Door with Remote Control

MOQ:	1
harga:	500

Detail Information

Product Description

Detail Information

Sertifikasi:

ISO9001, CE

Ketebalan panel pintu:

40mm

Ketebalan baja galvanis:

0,4 mm

Jalur baja galvanis:

2.0mm

Tegangan motor:

AC 220V-240V

Frekuensi motor:

50/60Hz

Konduktivitas termal:

0.38 w/mc

Isolasi Akustik:

24dB ((DIN52210)

Tahan Api:

B2 (DIN4102)

Hambatan angin:

450N/m2

Kepadatan poliuretan:

46kg/m3

Siklus pegas torsi:

30.000 siklus hidup

Penyelesaian permukaan:

Proses poliuretan

Bahan penyegel:

Perekat etilen-polikropilena

Bahan pelat pintu:

Baja galvanis celup panas dua lapis

Sistem Pengendalian:

Chip pemrosesan sinyal digital

Menyoroti:

40mm Thickness Industrial Sectional Door

Wind-Resistant Overhead Sectional Door

Remote Control Sectional Garage Door

Product Description

Industrial Overhead Sectional Door

Customizable, durable, and weather-resistant sectional doors designed for factory and hangar applications with easy operation, wind resistance, and thermal insulation properties.

About Sectional Doors

Sectional rolling shutter doors consist of wide panels that can be customized with windows or steel sections. When retracted, these doors roll up and lie flat against the ceiling, making them suitable for installation in almost any conditions.

Insulated Construction

Our industrial sectional doors feature double-layer sandwich hot-dip galvanized steel panels with polyurethane surface processing. The 40mm thick core contains polyurethane insulation material, providing excellent thermal performance.

Box-shaped edge banding with connecting hinges

Embedded track design

Spherical vinyl resin sealing strips for weather protection

Steel-wrapped wheels with cable breaking safety system

Technical Specifications

Performance Parameters

Parameter	Value
Thermal Conductivity	0.38 W/m·K
Acoustic Insulation	24 dB (DIN52210)
Fire Resistance	B2 (DIN4102)
Wind Resistance	Standard wind load 450 N/m²

System Components

Motor Transmission System

Industrial door-specific motor with reduction gear

Three-phase asynchronous motor with brake system

Axle drive for stable and reliable operation

Manual chain mechanism for power failure situations

Control System

Digital signal processing chip with industrial-grade isolation

Advanced phase sequence and overcurrent protection

Blue screen LCD display with status monitoring

Fourth-generation absolute value limit technology

Vector frequency conversion for smooth operation

Multiple interface ports for additional safety devices

Door Panel Construction

Double-layer hot-dip galvanized embossed steel

Polyurethane density: 46 kg/m³

Panel thickness: 40 mm

Individual steel sheet thickness: 0.4 mm

Flame-retardant polyurethane core material

Comprehensive sealing at all joints

Rail System

High-quality anti-corrosive metal guide rails

2mm thick rail brackets

Multiple lifting configurations available

Optimized for various building structures

Torsion Spring System

Galvanized torsion springs

Minimum 30,000 life cycles

Complete system including pivot, rope wheel, and coupling

Safety Systems

Torsion spring break-proof system

Wire rope anti-break device with 5cm self-locking

Safety pressure switch for obstacle detection

Infrared safety beam for automatic reversal

Sealing System

Ethylene-polypropylene adhesive bottom seal

Low-temperature and anti-fracture resistant

Comprehensive perimeter sealing

Protection against rain, dust, sound, and heat

Component Visualization

Operation Mode

Torsion Spring

Spring Break Protection

Galvanized Steel Track

Top Seal

Bottom Sealing Strip

Hardware

Installation Overview

Mechanism Details

Complete System

Frequently Asked Questions

What is the minimum order quantity for the product?

There is no minimum order quantity for our products. We recommend using wooden crates for protection during shipping.

What sizes and application scenarios are available for your products?

We provide professional suggestions and drawings based on customer needs to deliver optimal solutions for various applications.

Can I get industrial door samples for quality checking?

Yes, samples are available for quality verification.

How do I get a price for the product I need?

Please provide the exact size and quantity requirements. We will prepare a detailed quotation based on your specifications.

What payment terms do you accept?

We typically accept T/T (Telegraphic Transfer) payments.

How can we apply to become your agent in our area?

We welcome partnership opportunities. Please send your ideas and company information via email to discuss collaboration possibilities.

Can you send me a price list?

Yes, we can provide quotations for standard sizes. Since our products are custom-sized, please specify your requirements for accurate pricing.

Is it convenient to visit your factory?

Yes, our factory is conveniently located just 2.5 hours from Shanghai Airport. We welcome visits and look forward to hosting you.
